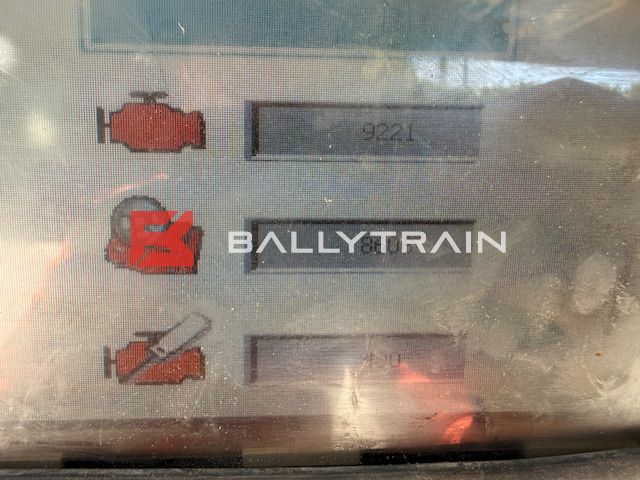

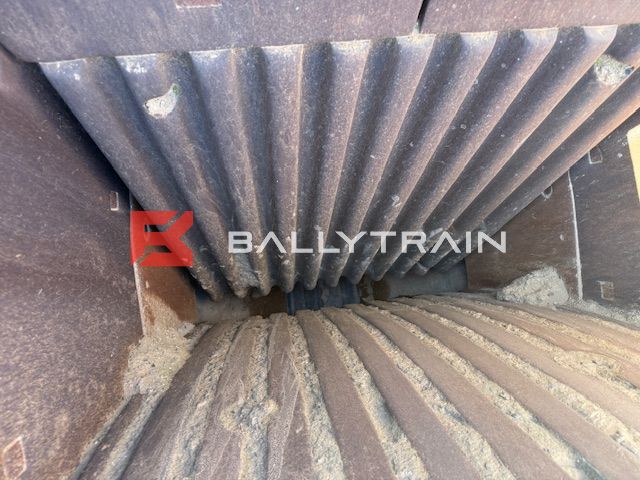

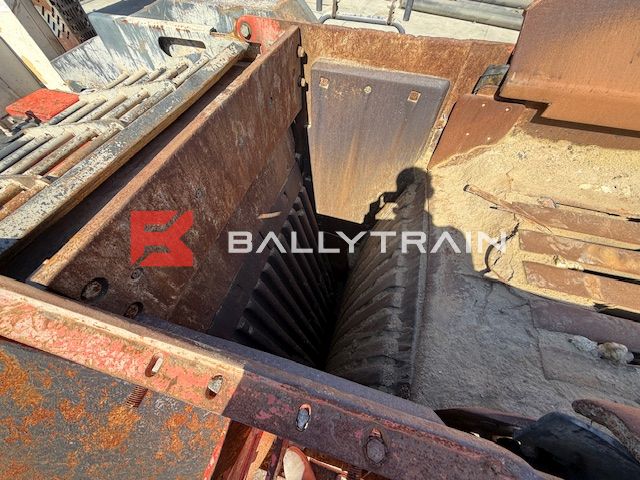

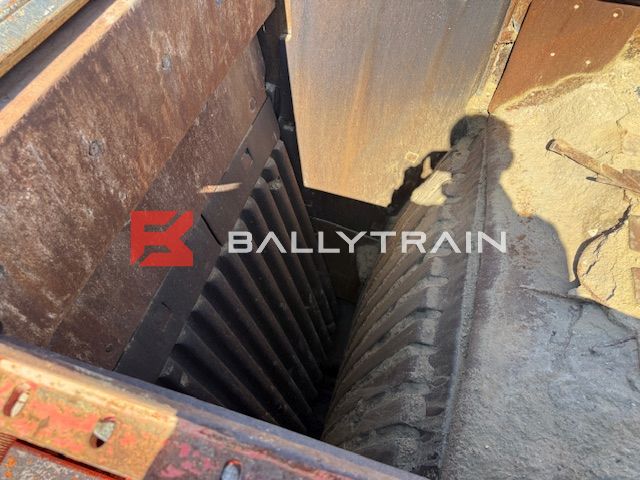

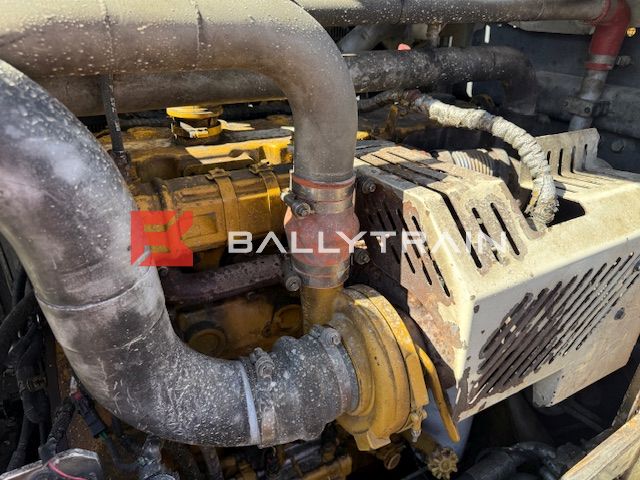

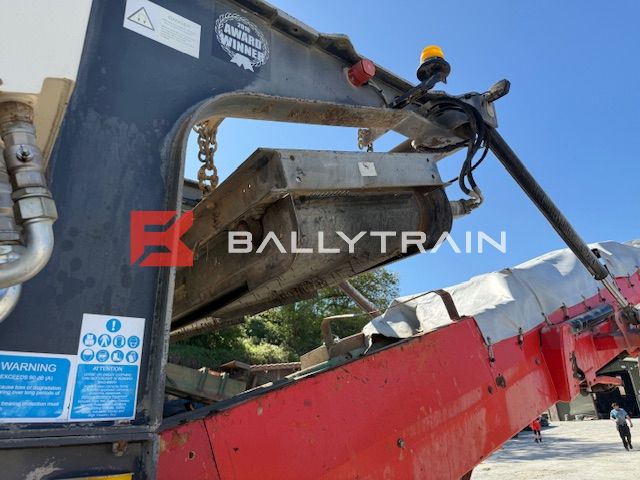

Sandvik QJ341 Jaw Crusher for sale, Mobile Jaw Crusher, 2016 year with 8,606 crushing hours and 9,221 engine hours showing on the clock. This crusher is just into stock. This is same as Extec C12 crusher, Fitted with Caterpillar C9.3 Diesel engine – Engine is EPA compliant for USA so can be imported into America. We have carried out some work on the engine fittings new Camshaft, Camshaft followers, 4 valve guides, 4 valves, gasket kit and injector seals, Engine fully checked over and now ready for work. 1200MM X 750MM (47″x 29″) Jaw opening, The current Jaws fitted in the machine are % good as you can see from images below. The QJ341 Crusher has a large Vibrating feeder with folding hopper wings. Cat ways all in place around crush box and engine bay, 4 x Heavy duty Landing legs, Hydraulic legs for increased stability and servicing capabilities. Dust cover installed over discharge belt, Magnet installed over main discharge belt for the removal of metals from crushed material. This QJ341 comes with Side belt for removal of fines / dirt before crushing. Very clean and tidy jaw crusher, running good. Sandvik QJ341 Mobile Jaw Crusher. Comes with dog lead remote for tracking and also wireless remote for tracking.

Sandvik QJ341 will produce up 400 Tonnes per hour. QJ341 Crusher is in good condition, Very Clean Jaw Crusher for sale. Cheap Mobile Jaw Crusher for sale. Same crusher as Extec C12. This Sandvik jaw Crusher will handle all types of material that needs to be crushed, Ideal machine for quarry operations or recycling/demolition business. Extec C12 Jaw Crusher.

Worldwide Shipping options available, for keenest rates to get this jaw crusher delivered to your local port or site please click here to contact us.

See the YouTube video of the Sandvik QJ341 Crusher running in our yard here at Ballytrain Plant by clicking here.

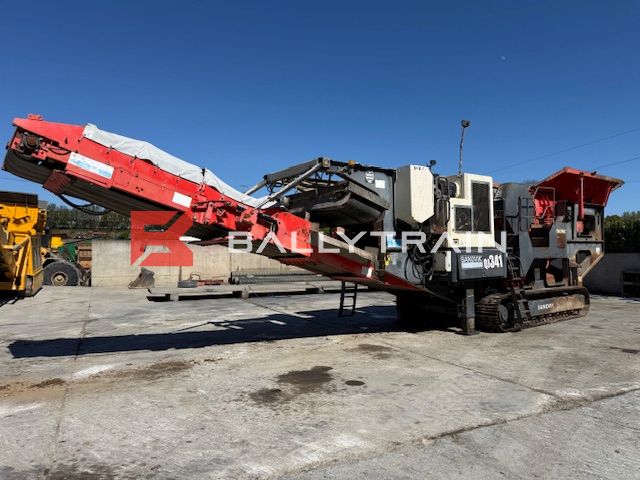

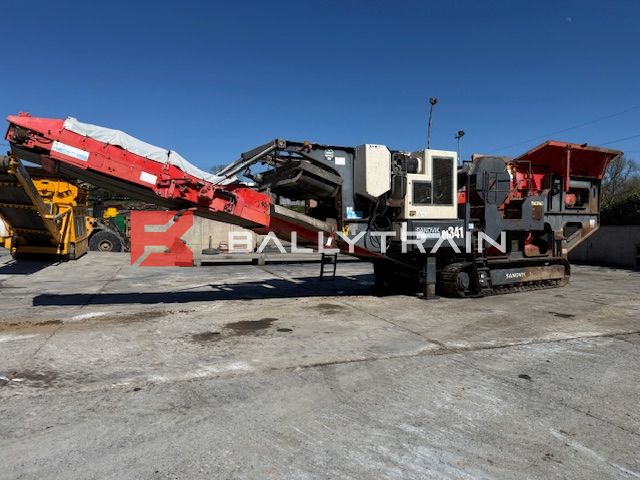

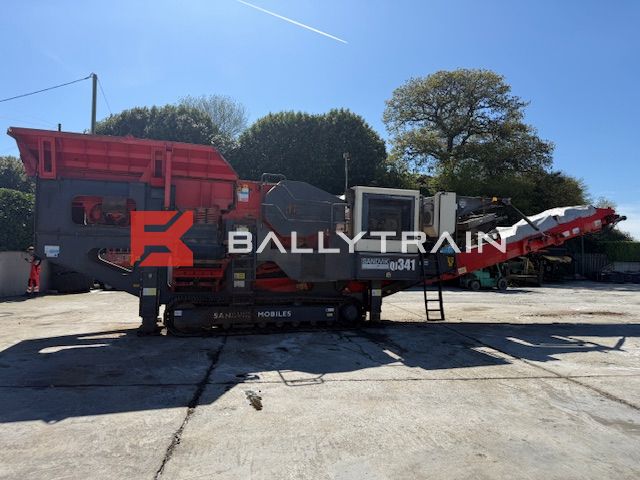

Sandvik QJ341 Mobile Jaw Crusher

The QJ341 Mobile jaw crusher is the flagship of the range and one of the best selling track mounted jaw crushers in the world today.

The largest in the Sandvik Premium range of jaw crushers, the QJ341 Mobile jaw crusher features a massive 1200 x 750mm (47 x 29″) jaw opening designed to tackle the most difficult applications. It has been designed to meet the needs of the operator seeking a high performance mobile jaw crusher which is both reliable and durable. With a large feed opening and unique high crushing speed it is capable of delivering high outputs with excellent reduction ratios.

The powerful jaw crusher is capable of handling the most challenging of quarry applications but equally capable in the recycling segment with its large under-belt clearances and is equipped with a hydraulic raise and lower facility on the main conveyor as standard.

Features and Benefits:

• Hydraulically adjustable jaw setting to maximise your output
• Reverse crushing action to crush sticky material or relieve blockages
• Hydraulic drive enabling the crusher to start under load, minimising downtime
• Jaw level sensor available to control feed rate with minimal intervention
• Raise/lower facility on the main conveyor, ideal for your recycling operations

KEY SPECIFICATIONS
Equipment	Single toggle C12 jaw crusher
Feed Opening	1200 x 750 mm / 47″ x 29″
Optimum Feed Size	650 mm / 25″ 6′
Engine	C9 / C9.3 Acert 261 kW / 350 hp D11 Volvo 265 kW / 355 hp
Transport Length	14.05 m / 46′ 1 ¼”
Transport Width	2.86 m / 9′ 4 ½”
Transport Height	3.45 m / 11′ 3 ⅝”
Weight	45,233 kg / 99,722 lbS
