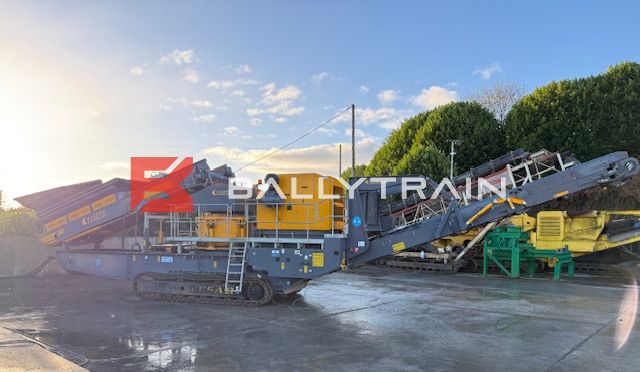

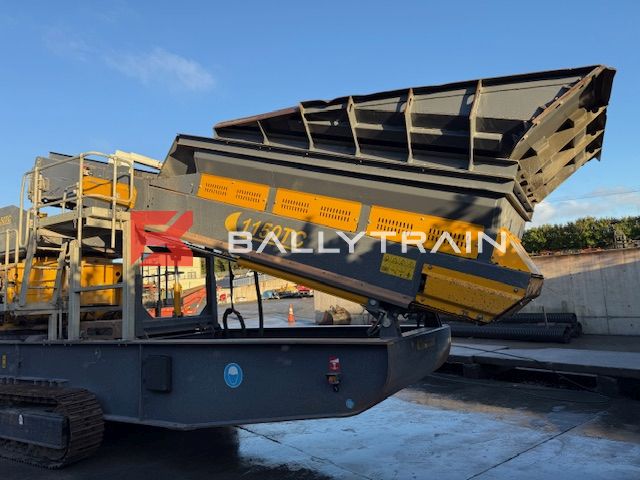

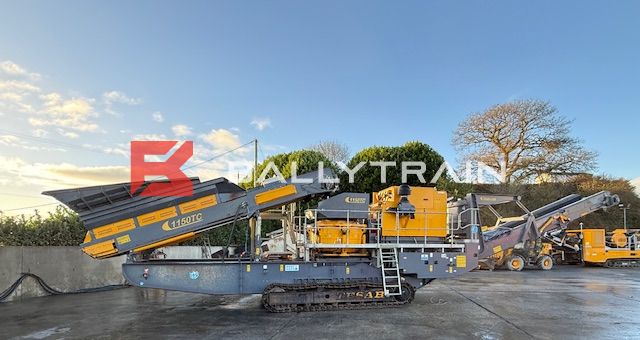

Tesab 1150TC Cone Crusher for sale, Mobile Cone Crusher, Year 2022, Tesab cone with 5,000 hours on the clock. The cone fitted on this crusher is a CMB RS185, the exact same cone as Pegson 1150. 1150mm wide Cone Crusher fitted with CAT C9.3B Engine – Engine is EPA compliant so suitable for import to USA. This cone has a Medium Coarse head fitted and all wear parts are good, very well maintained and looked after machine. This machine also come with a brand new set of wear parts (See images below of spare parts). 1150mm / 45″ Medium Coarse Head Cone, Ideal for all type of crushing of hard Rock material. Large feeder/hopper feeding material into the cone crusher, feed belt and main discharge belt in good condition, Eriez Feeder metal detector installed over belt feeding into cone crusher and magic eye over the cone crusher. Main discharge on this machine folds for transport etc, Cone crusher in Excellent condition and can be purchased today. Tesab 1150TC Cone Crusher. We have spec/data sheet on this cone if required. Cone has just finished work, it came straight from work so is ready to go back into work.
The 1150TC Cone Crusher is a Heavy Duty Mobile Unit designed to produce High Quality Secondary Aggregates. The superior design consists of thicker manganese for longer life and a specially curved profile allows for unscreened feed, producing a superior shaped product! The 1150TC is a highly versatile machine! Very good access around the machine including Steps and Walk way Platform around engine and up to Cone Crusher. The high performance Tesab 1150TC has been designed for direct feed applications without pre-screening on clean rock.
The 1150TC features a 1150mm wide cone crusher unit with hydraulic closed side setting ‘on the fly’ and metal detection system on feed belt to protect from uncrushable. The 1150TC can be fed by Wheeled Loader, Excavator or Screening Plant and also integrates easily into the Tesab range of Crushers and Screeners.
Tesab 1150TC Cone Crusher
FEATURES & BENEFITS
- Up to 200+ Tonnes per Hour Production Rate
- Produces a Consistent High Quality Cubical Shaped Product
- Choice of Concave Chamber Options (coarse, medium or fine)
- Innovative design for Fast Setup and Easy Transportation
SPECIFICATIONS
PRODUCT SPECIFICATIONS |
|
| Production Rate | 200+ TPH |
| Max Feed Size | 180mm (7″) |
| Reduction Ratio | Up to 6:1 |
| Feeder Belt | Yes |
TRANSPORT DIMENSIONS |
|
| Height | 3700mm (12’2″) |
| Width | 3000mm (9’10”) |
| Length | 17,900mm (58’9″) |
WORKING DIMENSIONS |
|
| Width | 3000mm (9’10”) |
| Length | 18,600mm (6’1″) |
| Weight (Est.) | 42,000Kgs (92,595lbs) |
Tesab Mobile Cone Crusher, CMB Cone Crusher for sale. CMB RS185 Cone Crusher. CMB RS185 Cone, Tesab 1150TC, Pegson 1150 cone. Used Cone Crusher for sale, New Static Cone.
Get a quote on shipping this Tesab Cone Crusher to your site or nearest port by contacting us today. If you require more information please click here to contact us.
See the YouTube video of the Tesab 1150 Cone Crusher running in our yard by clicking here.
Specifications
Make
Tesab
Model
1150TC Cone Crusher
Availability
Out of Stock
Fuel
Diesel
Year Built
2022
Hours On Meter
5,000
Crusher Opening
1150mm
Mobile
Yes
